RS485 RS232 HMI Human Machine Interface For Industrial Control Monitor

Brand Name : Lensen

Certification : CE

Place of Origin : China

MOQ : 2pcs

Price : Negotiation

Payment Terms : T/T, Paypal

Supply Ability : 6000pcs/month

Delivery Time : 2-8 days

Packaging Details : standard carton

Type : TFT, Resistive

Resolution : 480*272

Brightness : 400

Port : RS232, RS485

Material : Engineering Plastic

Size : 4.3''

Contact Now

RS485 RS232 HMI Human Machine Interface For Industrial Control Monitor



4.3 Inch HMI RS485 RS232 Port All In One Touch Screen For Industrial Control Monitor CNC Control



Industrial HMI touch panel 4.3 inch TFT LCD display, 16.7M colors, Human Machine Interface can be connected with various industrial automation products, PLC or controller to achieve easy communication and general operation.



Type Parameter Value











Display

 Screen size: 4.3" TFT LCD
Resolution: 480*272
Brightness(cd/㎡): 400
Contrast Ratio: 500:1
Backlight Type : LED
Backlight Life Time : >30,000 hrs.
Colors : 16.7M
LCD Viewing Angle: (T/B/L/R) : 80/80/80/80
Touch screen Touch Panel Type : 4-wire Resistive Type
Touch Panel Accuracy : Active Area Length(X)±2%, Width(Y)±2%
Memory Flash : 128 MB
RAM : 64 MB
Processor   ARM Cortex-A7 1GHz

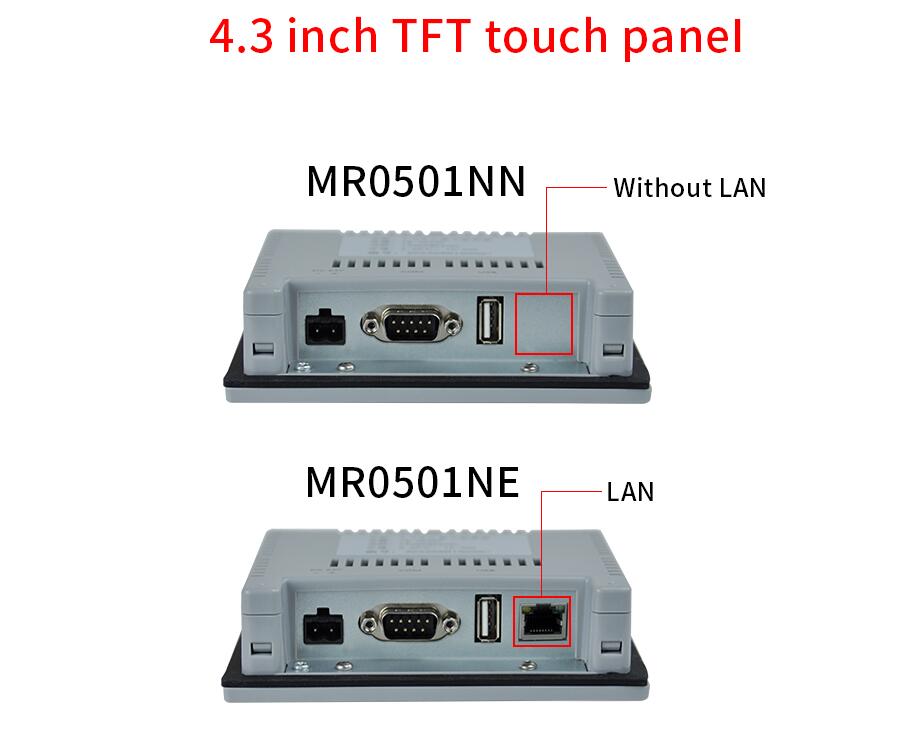

Port USB Host I/O Port: USB 2.0 x 1
RS232: COM 1
RS485: COM2: 2W/4W, COM3: 2W
Ethernet: 10/100Mbps self-adaption
4G remote: Not support
RTC   Built-in real-time clock
Power Input Voltage : 9-36±10% VDC
Rated power: 10W(420mA@24VDC)
Power Isolation : Built-in
Voltage Resistance : 500VAC (1 min.)
Insulation Resistance : Exceed 50MΩ @ 500VDC
Dimension Vibration Endurance : 10 to 25Hz (X, Y, Z direction 2G 30 minutes)

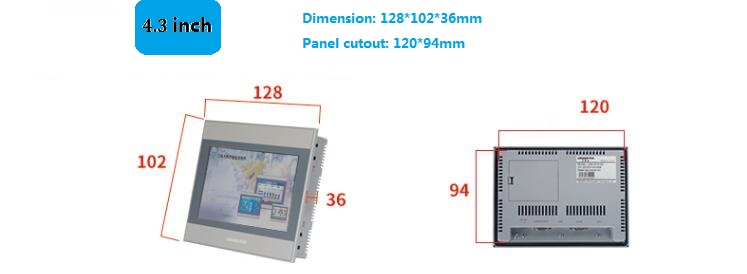

Dimension : 128*102*36mm
Enclosure : Engineering Plastic
Panel Cutout : 120*94 mm
Mounting : Panel mounting
Weight Approx. : Around 0.5 kg
Working Condition Protection Structure :

IP65 Compliant Front Panel,

IP20 Compliant Back Panel


Storage Temperature : -20°~60°C (-4° ~ 140°F)
Operating Temperature : 0° ~ 50°C (32° ~ 122°F)
Relative Humidity : 10% ~ 90% (non-condensing)
Certificate CE: Complaint
Software PC software: Smart manager PRO V2.05 or higher version





RS485 RS232 HMI Human Machine Interface For Industrial Control Monitor









RS485 RS232 HMI Human Machine Interface For Industrial Control Monitor
